Descrizione
Frame Full Carbon 29”, Toray T700,
integrated battery, internal routing,
Rear travel 150 mm, 12×148 mm EThru

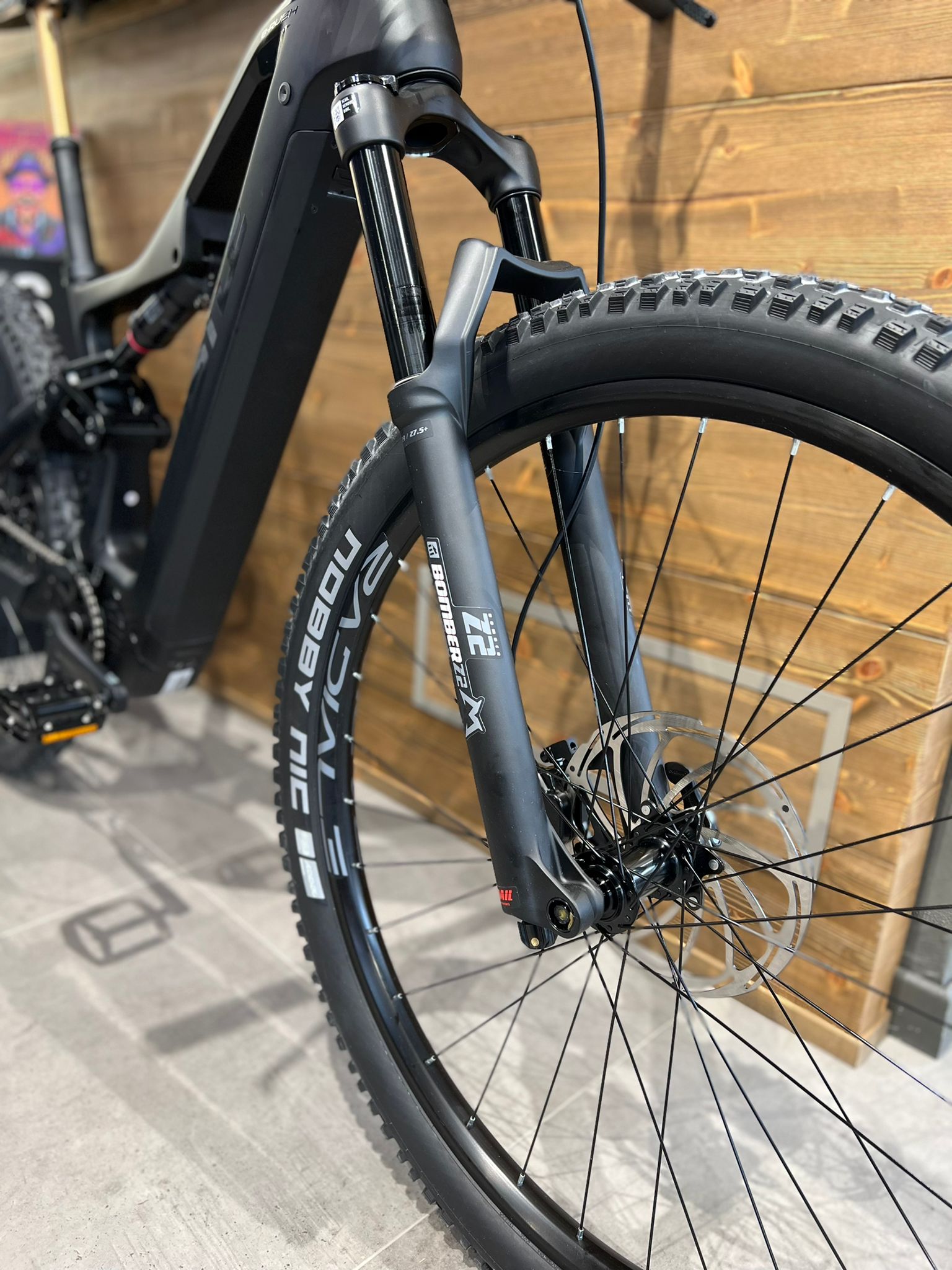

Fork Marzocchi Bomber Z2, 140 mm, Air,
1.5 Tapered, 15×110

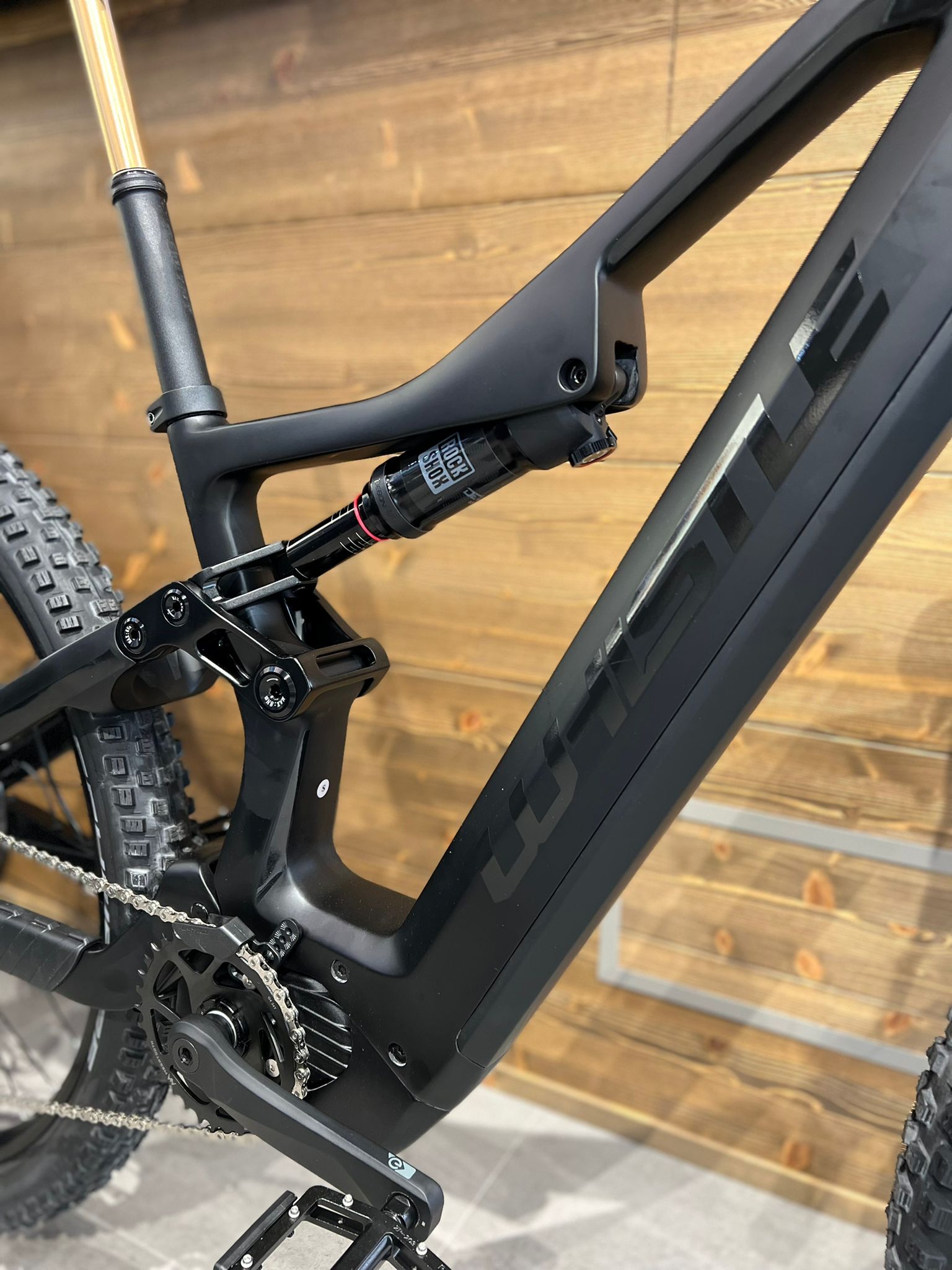

Rear Shock Rock Shox RS Deluxe Select R, 230×65
Headset Acros AZF-575, 1,5”, Internal routing
Crankset FSA, 34T MegaTooth
Rear Derailleur Sram SX Eagle
Shifters Levers Sram SX Eagle Single Click Trigger, 12s
Brakes Clarks M4, Rotor 203mm/203mm
Cassette Sram PG1210 Eagle 12s, 11/50
Pedals Alu MTB Full+
Front Hub Formula CL-811, 15×110, CL, 32h
Rear Hub Formula CL-3248, 12×148, CL, HG, 32h
Rims RADIALE X30, eDesign | Asymmetric,
Tubeless Ready, 622x30c
Stem Alu, Length 35 mm, Bar bore 35 mm
Handlebar Alu , 780 mm, Rise 15, Barbore 35 mm

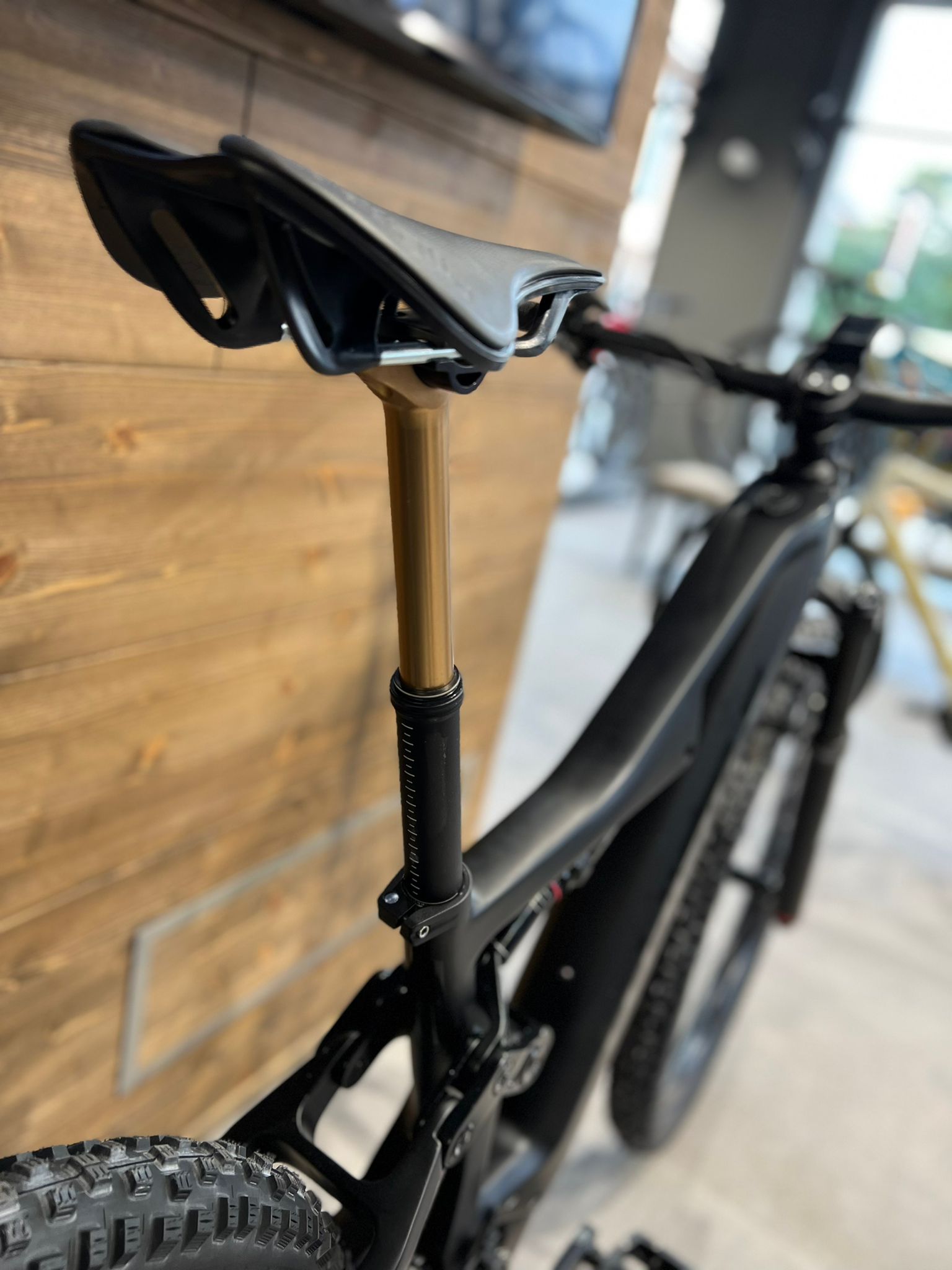

Seatpost Dropper Alpha 1, 31,6 mm, remote
Saddle Sella Italia
Tyres Schwalbe Nobby Nic, Performance,
Addix, 29”x2,60”
Note Sensore cablato
Motor Bosch Smart
System Perf. CX 36
V, 250 W
Max Torque 85 Nm
Sensor Type Torque
Battery Powertube 750
Horizontal,
frametype, weight
4,2 kg
Charger Type 4 A
Change Time Up to 6 hours
Max Assisted
Speed
25 km/h

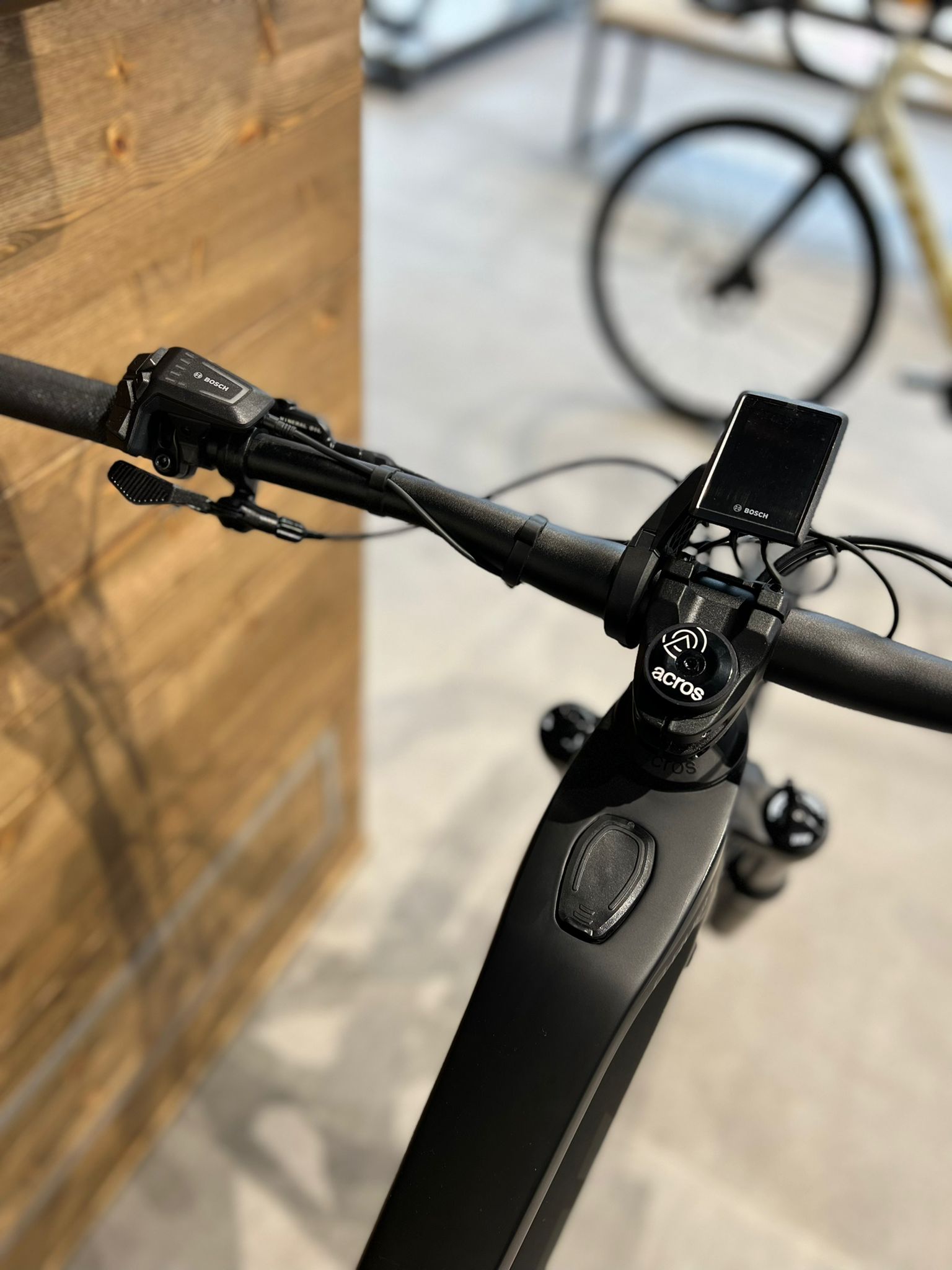

Display KIOX 300 +Led
Rremote
Power Eco: 60 %
Tour: 140 %
EMTB: Dynamic
Turbo: 340 %
