Descrizione
SPECIFICHE MECCANICHE

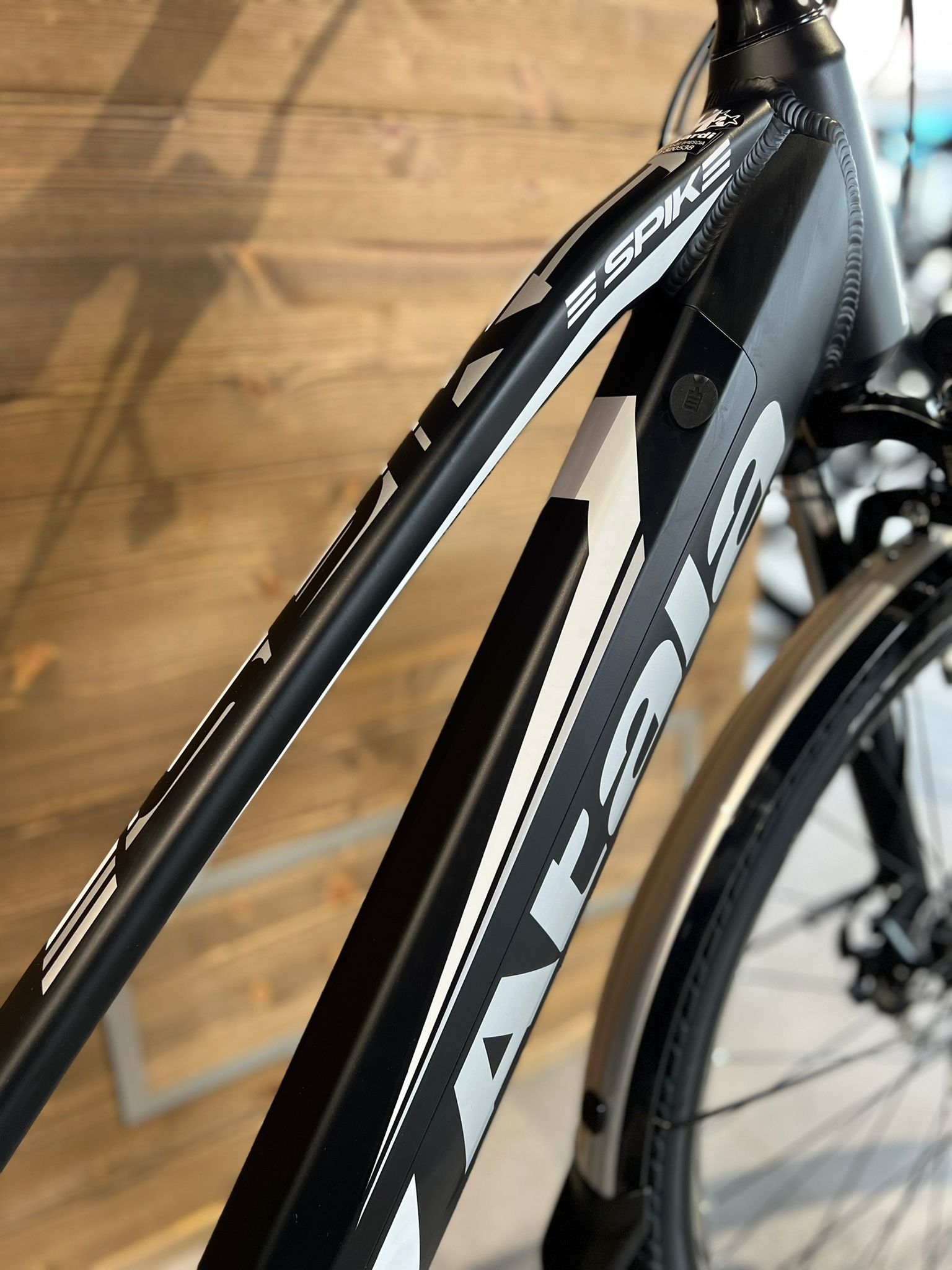

| Telaio | Alu. 700c, integrated battery, integrated HT, disc brake, internal cables |

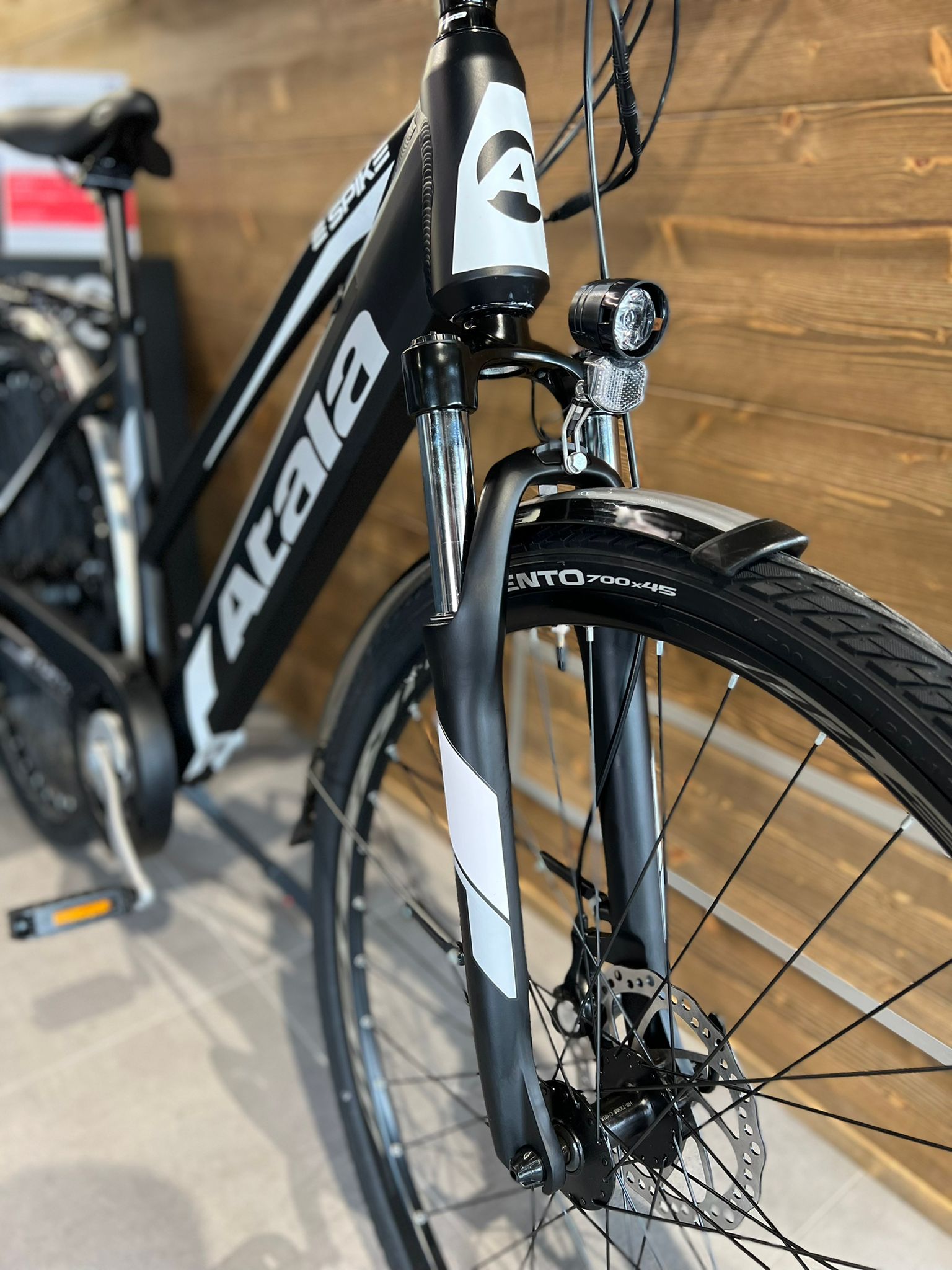

| Forcella | Suntour NEX 700c, alu with alu crown, 50mm o Zoom 187D, 29”, 65mm, Coil |
| Serie sterzo | FSA integrated 1”1/8 |
| Guarnitura | Byte alu 42T cartridge |
| Cambio | Shimano Tourney RD-TY500 / L-TWOO RD-V4007-M-2, 7s |
| Comandi | Shimano SL-M315 PushPull, 7s / L-TWOO SL-V4007-7W-2, 7s |
| Freni | Tektro Aries MD-M300, Mechanic disk, Rotor 160 mm, with brake lever switch |
| Ruota Libera | Shimano Tourney 7s 14-28 / L-TWOO FW-207 7s 13-28 |
| Pedali | Resin City |
| Mozzi | Shimano quick release front, motor on rear, 36h, INT |
| Cerchi | Beretta 700c, double wall w/eylets, 36h, disc |
| Attacco manubrio | Byte alu, adjustable |
| Piega manubrio | Byte steel TKK |
| Reggisella | Byte alu with clamp, 27,2mm |
| Sella | Selle Royal Wave |
| Coperture | Byte Trento 700x45c |
| Parafanghi | Single stay speedy |
| Copricatena | Plastic, L type |
| Portapacchi | Rear steel 10mm with spring, 25kg load |
| Luci esterne | Axa front (15 lux) and rear LED, controlled by display |
| Taglia | 45 |
| Colore | Black/Ultralight Matt |
| Note | kickstand Ursus adjustable, bell, wheel reflectors |
SPECIFICHE ELETTRICHE
| Coppia massima | 35 Nm |
| Tipo sensore | Speed sensor w/12 pulses |
| Batteria | 360 |
| Tipo caricabatteria | 2A Europlug |
| Tempo di ricarica | 100%: 6h4m / 80%: 4h27m |
| Velocità max assistita | 25km/h |
| Display | Atala A15 LED UART, Power +/- |
| Potenza | 5 levels, Speed/Torque adjust |
| Altre funzioni | Soft start: 0 – 6km/h, with no pedalingExternal light control |
